*due to the uniqueness of basalt each stove can have small differences.

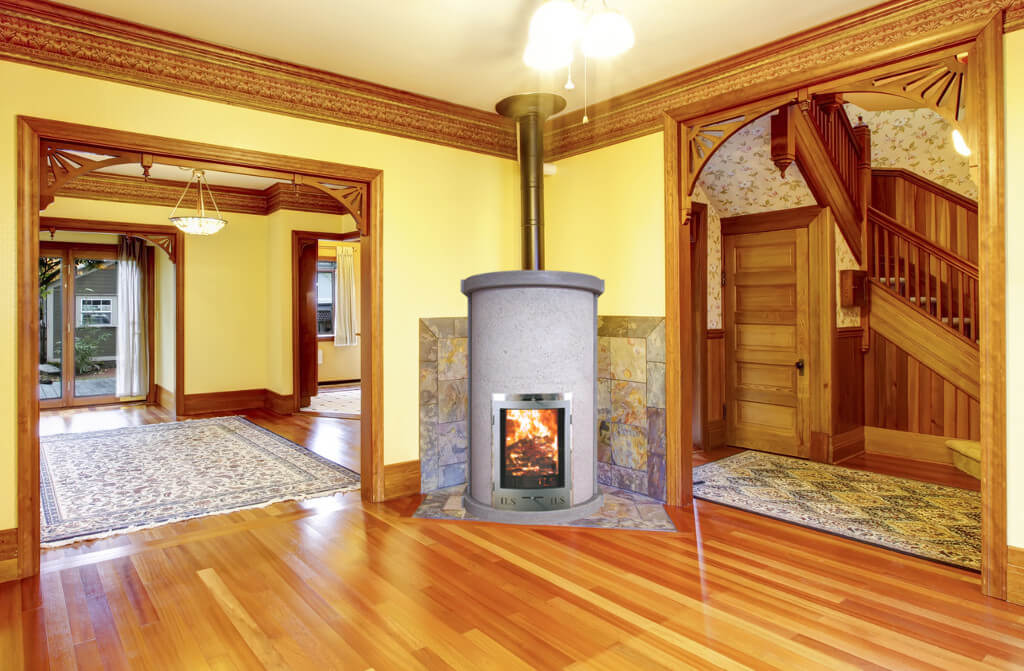

High efficency lava stone stove
Id
RAG-360
Type
Round stove
Name
Antuan nature - Mod. R360
Data Sheet
(1.5 MB)
(1.5 MB)
Availability
On Demand
Height
1280 mm
Width
776 mm
Depth
752 mm
Axis height
935 mm
Drain diameter
160 mm
Vertical misalignment
163 mm
Door glass height
460 mm
Door height
610 mm
Weight
560 Kg
Max wood load
8 Kg
Power with a charge
22 Kw
Max power
2.8 Kw/h
Charging interval
7 / 9 h
Combustion performance
88 %
Max system performance
73 %
m³ heatable
Until 632 m³
Antuan is the newest addition to the ILS collections stoves. Thanks its perfection you'll be able to discover the pure and natural beauty of the lava rock.
Stove
Modular storage system with hypocaust system.
Features
The fireplace and the recycling flue are in marine basalt lava by 42 mm of thickness and cylindrical in shape all enclosed in a COR-TEN steel shell from 30/10 mm in turn covered in marine basalt lava of 42 mm thickness.
Heating system
Storage stove with radiant heating system. On request, it is possible transform the plant in an natural convection system.
